Engineered Solutions
Not Just Panels
Every project has unique challenges. At Gaolin, we don’t just sell panels—we engineer solutions. Select your application below to discover how our specialized panel series are designed to deliver unmatched performance, compliance, and value.
For Kitchen & Bathroom Cabinetry
Swelling, Warping, Finish Failure? Build Confidence for Wet Environments.
Moisture is the silent enemy of cabinetry. Conventional panels can absorb humidity, leading to dimensional instability, delamination, and costly callbacks that damage your brand’s reputation for quality.
The Gaolin Hydro-Shield Series: Engineered to Perform Where Others Fail.
- Extended product lifespan in wet conditions.
- Maintains dimensional stability to preserve flawless finish.
- Reduces warranty claims and protects brand reputation.

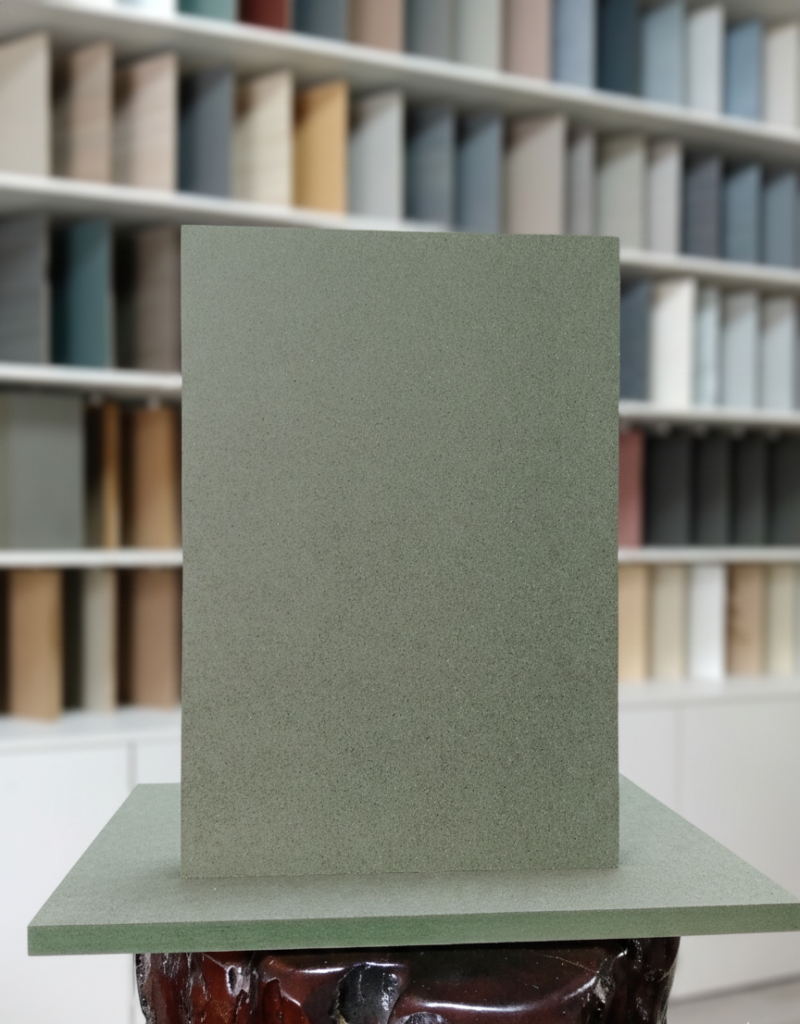

Moisture-Resistant HDF（HMR）
- Substrate: Eucalyptus
- Dimension: 1220/1525/1830/2100 x 2440/2745/2800/3050
- Thickness: 2-30mm
- Finishing Service：Melamine PET Wood Veneer UV Lacquer
Technical Specifications & Performance Data——
- Density：≥820 kg/m3
- Water Content: 3%-13%
- Modulus of Rupture (MOR): ≥24 Mpa
- Modulus of Elasticity (MOE)：≥2300 Mpa
- Internal Bond Strength (IB)：≥0.5 Mpa
- Surface Bond Strength：≥0.9 Mpa
- Thickness Swell (24h immersion)：≤9%
- Wet MOR (after boiling)：≥5 Mpa
- Formaldehyde Emission：E2/E1/E0/P2/ENF/NAF/F4star

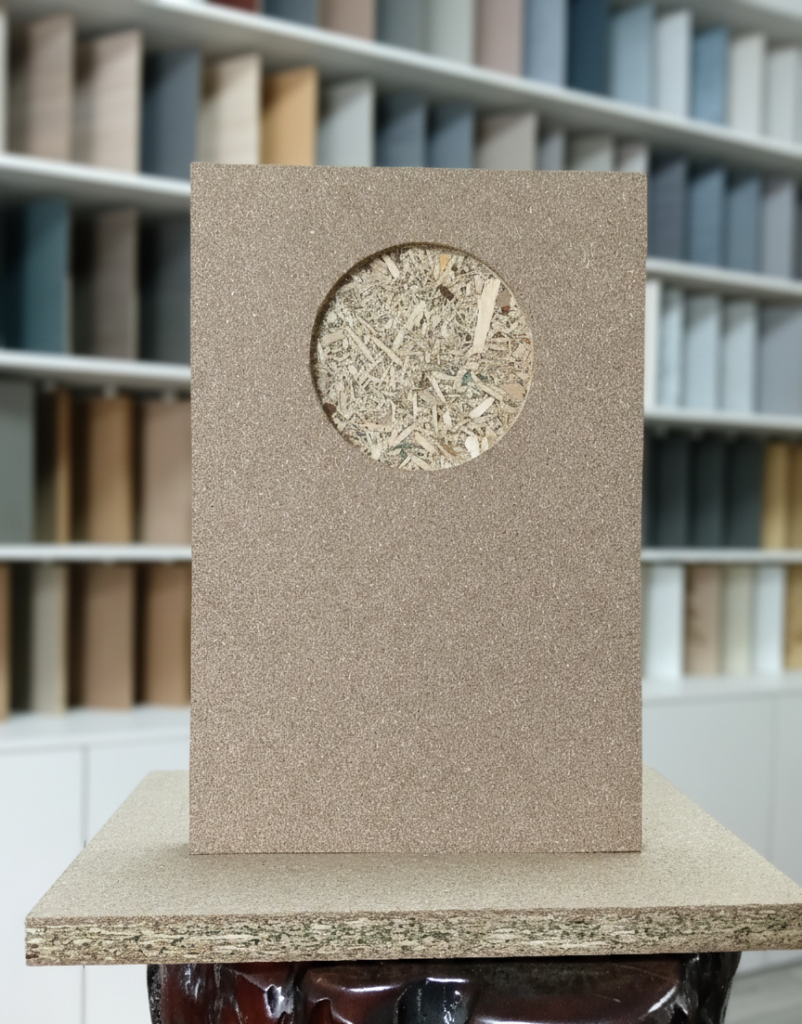

Moisture-Resistant Particle Board
- Substrate: Eucalyptus
- Dimension: 1220/1525/1830/2100 x 2440/2745/2800/3050
- Thickness: 9-45mm
- Finishing Service：Melamine PET Wood Veneer UV Lacquer
Technical Specifications & Performance Data——
- Density：≥640 kg/m3
- Water Content: 3%-13%
- Modulus of Rupture (MOR): ≥11.5 Mpa
- Modulus of Elasticity (MOE): ≥1600 Mpa
- Internal Bond Strength (IB): ≥0.35 Mpa
- Surface Bond Strength：≥0.9Mpa
- Screw Holding Strength（surface）：≥1100 N
- Screw Holding Strength（edge）：≥700 N
- Wet MOR (after boiling)：≥4.5 Mpa
- Thickness Swell (24h immersion)：≤13% or≤8%
- Formaldehyde Emission：E1/E0/P2/ENF/NAF/F4star

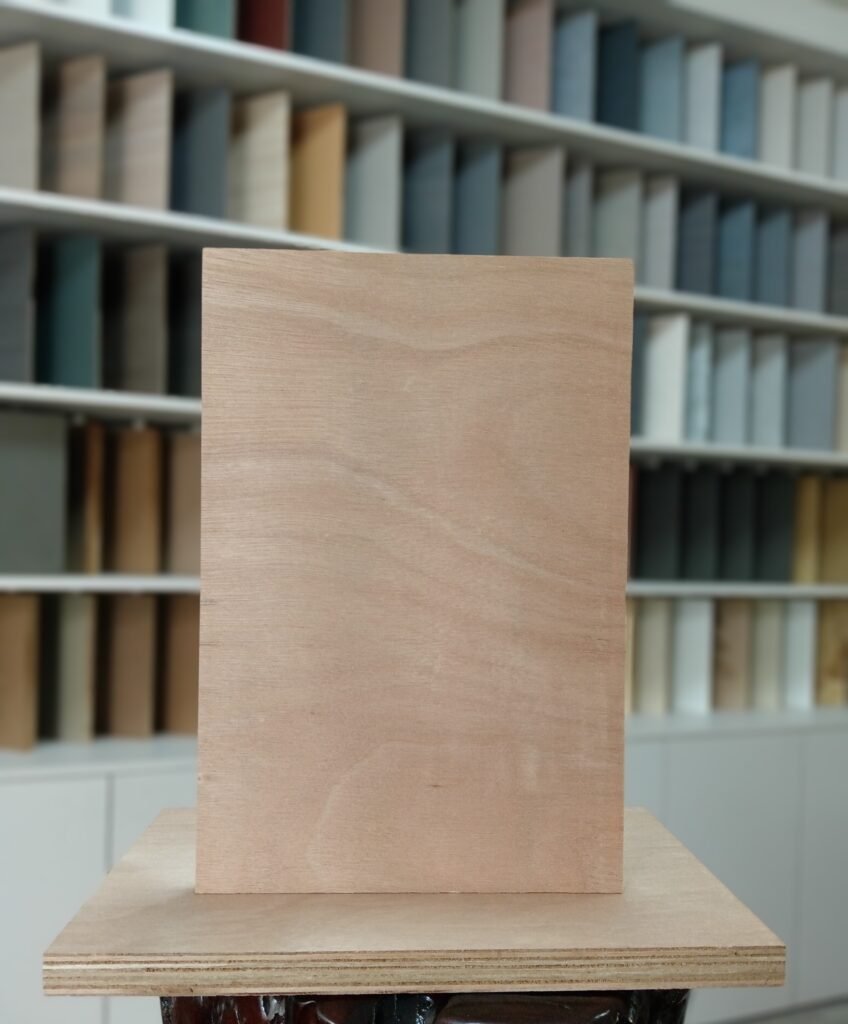

Eucalyptus Plywood
Substrate：Eucalyptus
Finishing Service：Melamine Wood Veneer
Technical Specifications & Performance Data——
Moisture content：5%-16%
Modulus of Rupture (MOR): 62.2/55.3 Mpa
Adhesive strength:1.85 Mpa
Modulus of Elasticity (MOE)：6820/6780 Mpa
Formaldehyde Emission：E1/E0/P2/ENF/NAF/F4star

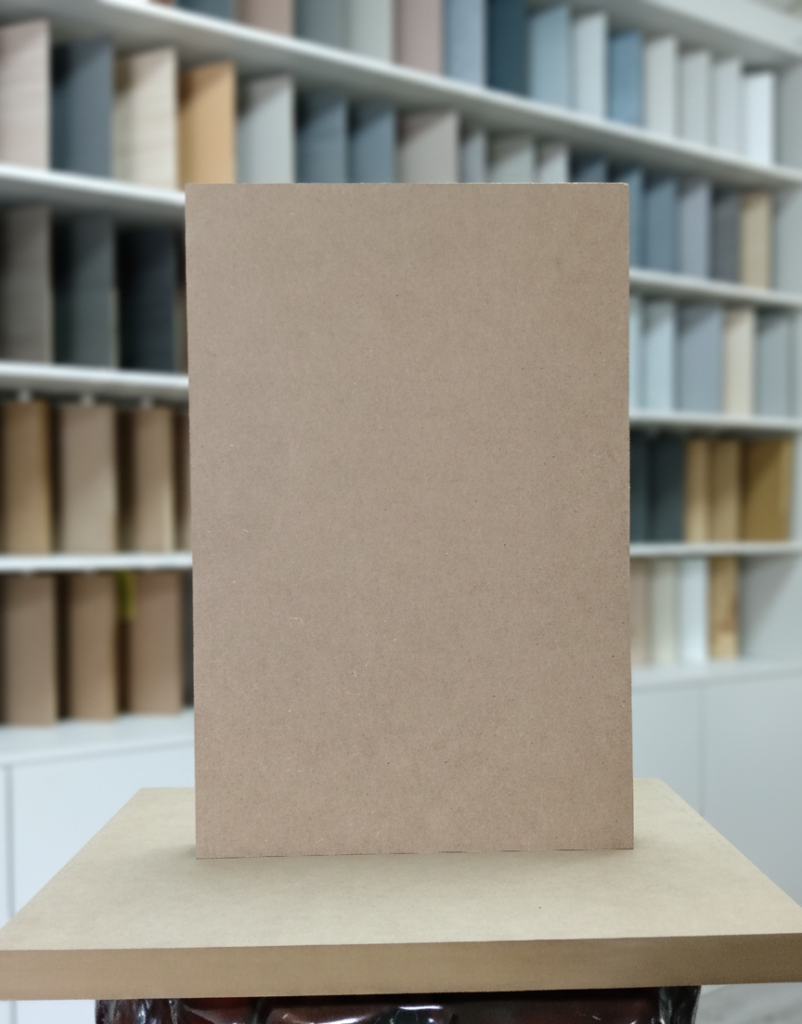

Product：Standard MDF
Substrate：Eucalyptus
Finishing Service：Melamine PET Wood Veneer UV Lacquer
Technical Specifications & Performance Data——
Density：650-800 kg/m3
Moisture content：5%
Modulus of Rupture (MOR): 26.66 Mpa
Modulus of Elasticity (MOE)：2480 Mpa
Internal Bond Strength (IB)：0.75 Mpa
Surface Bond Strength：1.35Mpa
Thickness Swell (24h immersion)：8.6%
Formaldehyde Emission：E1/E0/P2/ENF/NAF/F4star

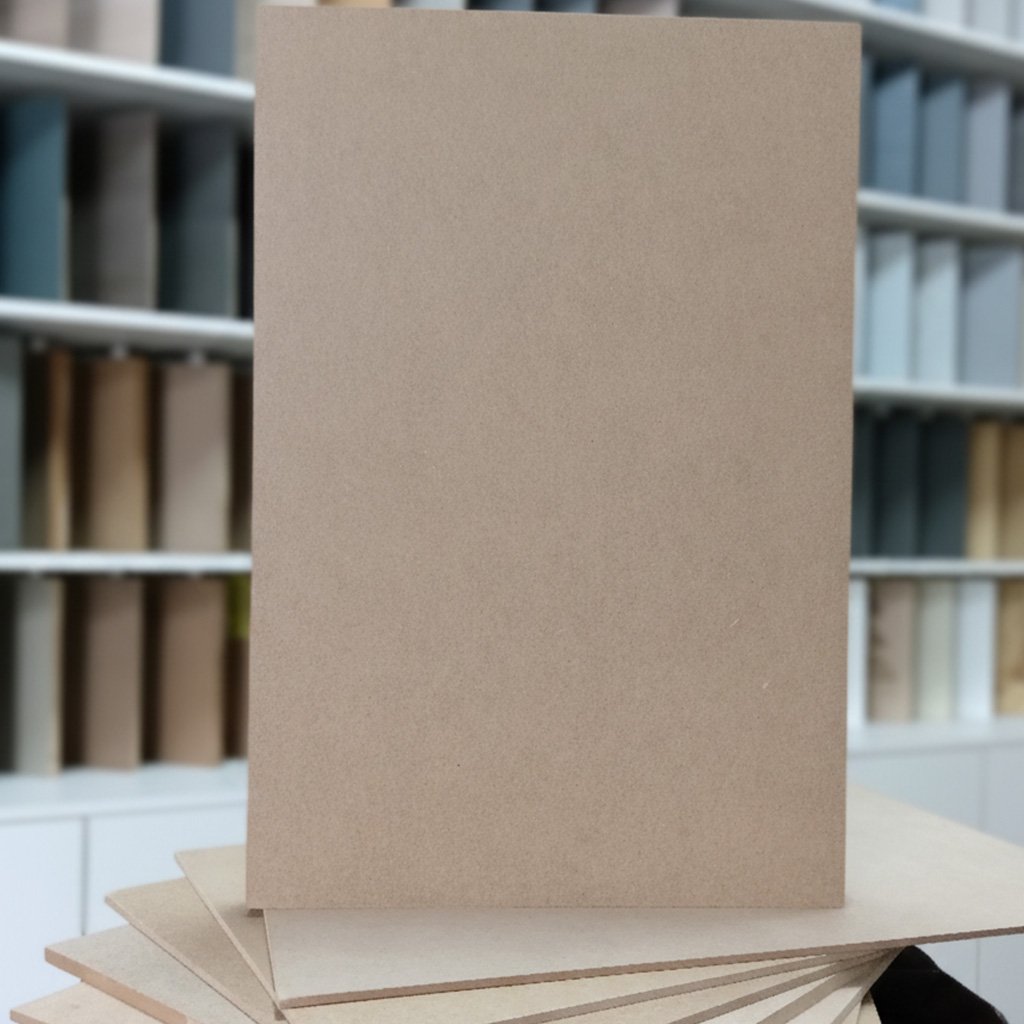

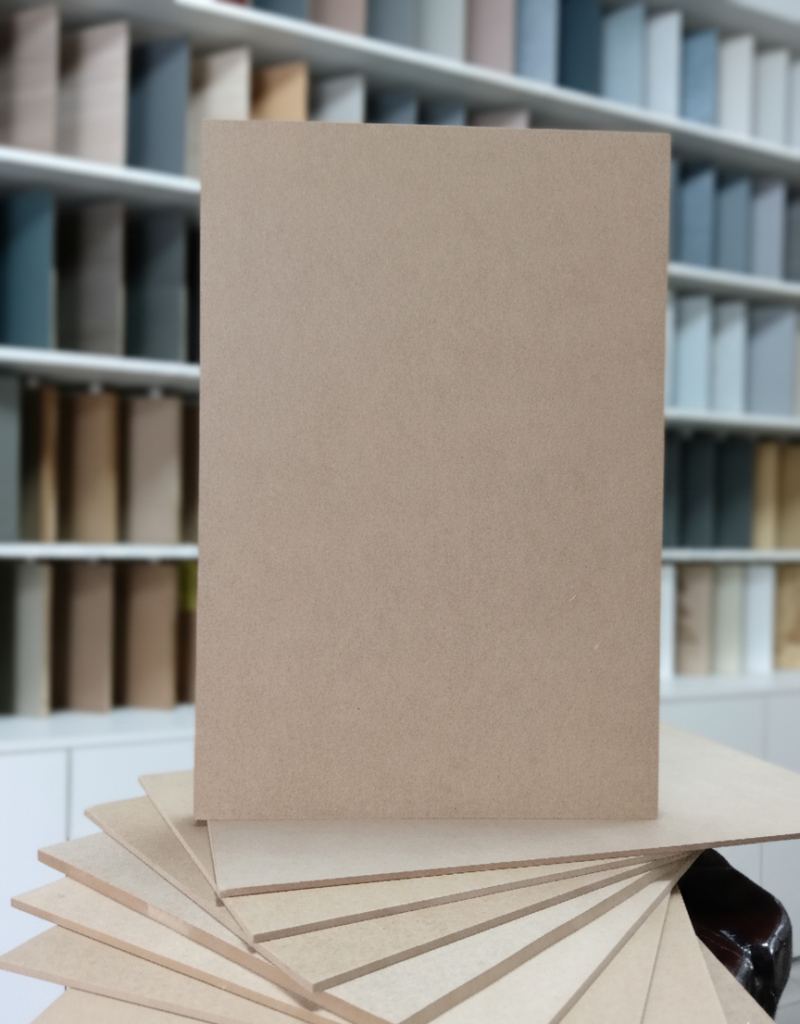

Featured Products: Ultra-Thin & Rigid HDF
Substrate：Eucalyptus
Density: 780-800kg/m3
Thickness:1-6mm
Highlight: Serves as an ideal, lightweight yet rigid back panel or drawer bottom, reducing overall product weight and material cost without sacrificing quality.
For Interior Doors & Large Panels
Heavy, Noisy, Prone to Sagging? Redefine What a Door Core Can Be.
Standard thick panels add unnecessary weight, straining hinges and installers. Seams and inconsistencies can lead to weak points, warping, and poor acoustic performance.
The Gaolin Door Core Specialty Series: Lightweight, Seamless, and Stable.
- Reduce installation stress and hardware wearwith lighter panels.
- Achieve flawless, consistent finishes on a seamless, stable core.
- Enhance durability and acoustics in doors and large-format panels.
Featured Products: Lightweight Extra-Thick Particleboard (Door Core Grade).
Substrate：Eucalyptus
Dimension：850 x 2200 mm 910 x 2300 mm （Other dimension can be customized）
Thickness：44mm
Formaldehyde Emission：E1/E0/P2/ENF/NAF/F4star

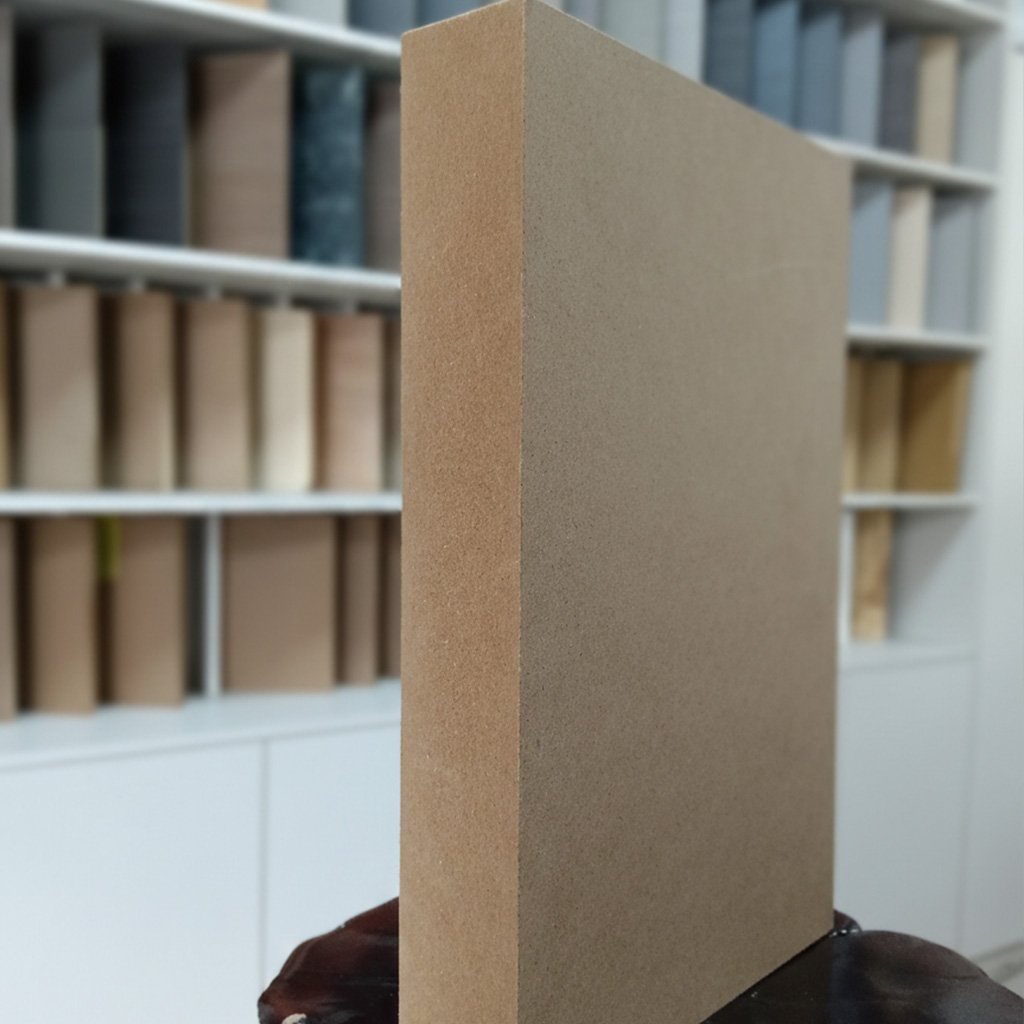

Featured Products: Lightweight Extra-Thick MDF (Door Core Grade).
Substrate：Eucalyptus
Density: 400-450kg/m3
Thickness：10-45mm
Formaldehyde Emission：E1/E0/P2/ENF/NAF/F4star
Featured Products: Large-Sized Particleboard
Substrate：Eucalyptus
Dimension: 2100x2800mm
Finishing Service：Melamine
Thickness：9-44mm
Formaldehyde Emission：E1/E0/P2/ENF/NAF/F4star
Featured Products: Ultra-Thin & Rigid HDF
Substrate：Eucalyptus
Density: 780-800kg/m3
Thickness:1-6mm
Highlight: Provides a perfectly flat and stable substrate for laminating, ideal for producing lightweight door skins and composite panels.
Featured Products: Large-Sized MDF
Substrate：Eucalyptus
Dimension: 2100x2800mm
Finishing Service：Melamine
Thickness：9-45mm
Formaldehyde Emission：E1/E0/P2/ENF/NAF/F4star
For Commercial & Public Spaces
Anxious About Safety, Codes, and Large-Scale Consistency?
ommercial projects demand more than just aesthetics. They require guaranteed fire safety compliance, batch-to-batch uniformity for seamless installation, and a mountain of documentation for approvals—all under tight deadlines.
The Gaolin Commercial Grade Series: Where Compliance Meets Scale.
- Fire-rated options (B-s1, d0 rating) that meet stringent international building codes.
- Rigorous process control ensures color, density, and thickness consistency across massive orders.
- Turnkey documentation packages (test reports, certifications) tailored for project submission.
Featured Products: Fire-Rated MDF
Substrate：Eucalyptus
Density:720kg/m3
Single Burning Item (SBI) Test——
Fire Growth Rate Index (FIGRA0.2MJ)≤120 W/S
Lateral Flame Spread not reaching the specimen’s long-edge
Total Heat Released (THR) over 600s≤7.5MJ
Smoke Growth Rate Index(SMOGRA) ≤30M2/S2
Total Smoke Production (TSP) over 600s≤50m2
No flaming droplets/particles within 600s
Ignitability——
Flame tip height within 60 seconds
Surface impingement by flame≤150mm
Edge impingement by flame≤150mm
Featured Products: Fire-Rated Plywood
Substrate：Eucalyptus
Single Burning Item (SBI) Test——
Fire Growth Rate Index (FIGRA0.2MJ)≤120 W/S
Lateral Flame Spread not reaching the specimen’s long-edge
Total Heat Released (THR) over 600s≤7.5MJ
Smoke Growth Rate Index(SMOGRA) ≤30M2/S2
Total Smoke Production (TSP) over 600s≤50m2
No flaming droplets/particles within 600s
Ignitability——
Flame tip height within 60 seconds≤150mm
Featured Products: Fire-Rated Particle Board
Substrate：Eucalyptus
Single Burning Item (SBI) Test——
Fire Growth Rate Index (FIGRA0.2MJ)≤120 W/S
Lateral Flame Spread not reaching the specimen’s long-edge
Total Heat Released (THR) over 600s≤7.5MJ
Smoke Growth Rate Index(SMOGRA) ≤30M2/S2
Total Smoke Production (TSP) over 600s≤50m2
No flaming droplets/particles within 600s
Ignitability——
Flame tip height within 60 seconds≤150mm
4.For Custom Furniture & Design
Limited by Standard Materials? Realize Bespoke Designs Without Compromise.
Off-the-shelf panels often force designers to compromise their vision. Limitations in size, thickness, surface quality, or machinability can stifle innovation and increase production complexity.
The Gaolin Design Core & Finish Series: Your Canvas for Innovation.
- Customized Freedom—— Flexible sizing and thickness options, including ultra-thin and super-thick panels, to match unique designs.
- Premium substrate—— Ultra-smooth, high-density hardwood core (MDF/HDF) for precise CNC machining, sharp edges, and flawless finishing.
- Rich finishes—— A wide range of melamine finishes (wood grains, solids, abstracts) and readiness for veneers, PET or UV lacquers.
Featured Products: High-Density Carving HDF
Substrate：Eucalyptus
Density: 780-800kg/m3
Highlight:Unlock efficiency and superior finish quality. Our high-density carving MDF (800+ kg/m³) provides an ultra-smooth, machinable surface that bonds perfectly with PVC foils. Achieve crisp, detailed door designs while saving time and cost by reducing post-machining preparation.
Idear For:
- High-end cabinet doors and decorative elements
- PVC membrane pressing and vacuum forming
- Applications requiring a pristine substrate for flawless laminated finishes.
Featured Products: Ultra-Thin & Rigid HDF
Substrate：Eucalyptus
Density: 780-800kg/m3
Thickness:1-6mm
Highlight: Maintains high density even at minimal thickness, ensuring superior screw-holding strength, moisture resistance, and machining stability compared to alternative thin materials.

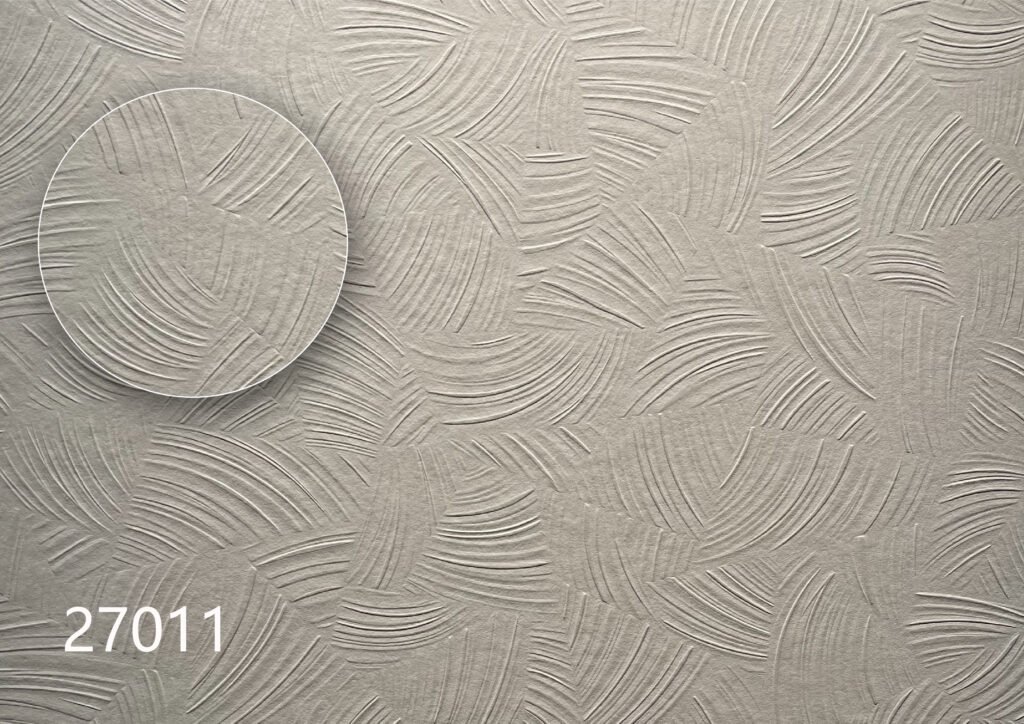

Featured Products: Premium Melamine Faced Panels
Substrate：Eucalyptus
Dimension: 1220 x 2440 /2745/3050mm 1525/1830 x 2440mm 2100 x 2800mm

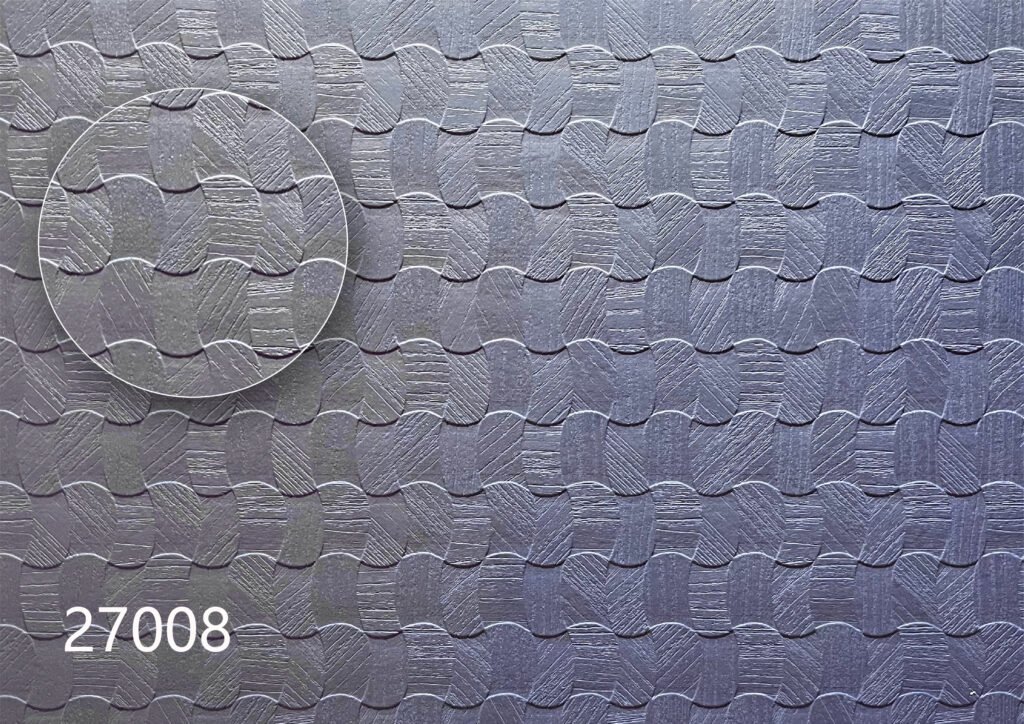

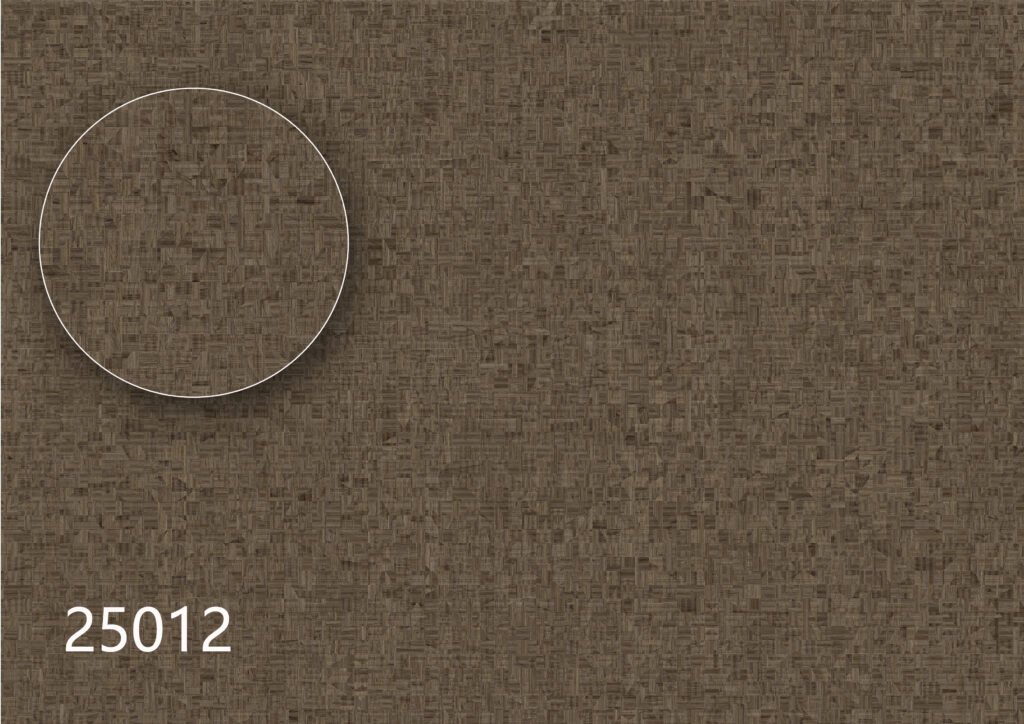

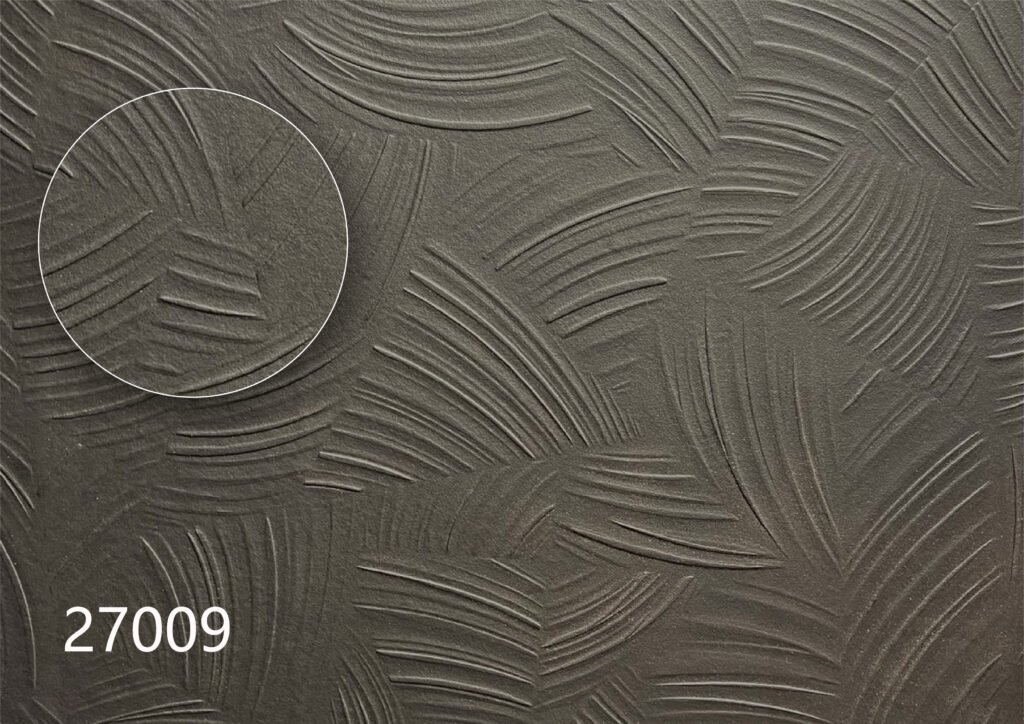

Colors: solid color wood texture stone texture Cloth texture

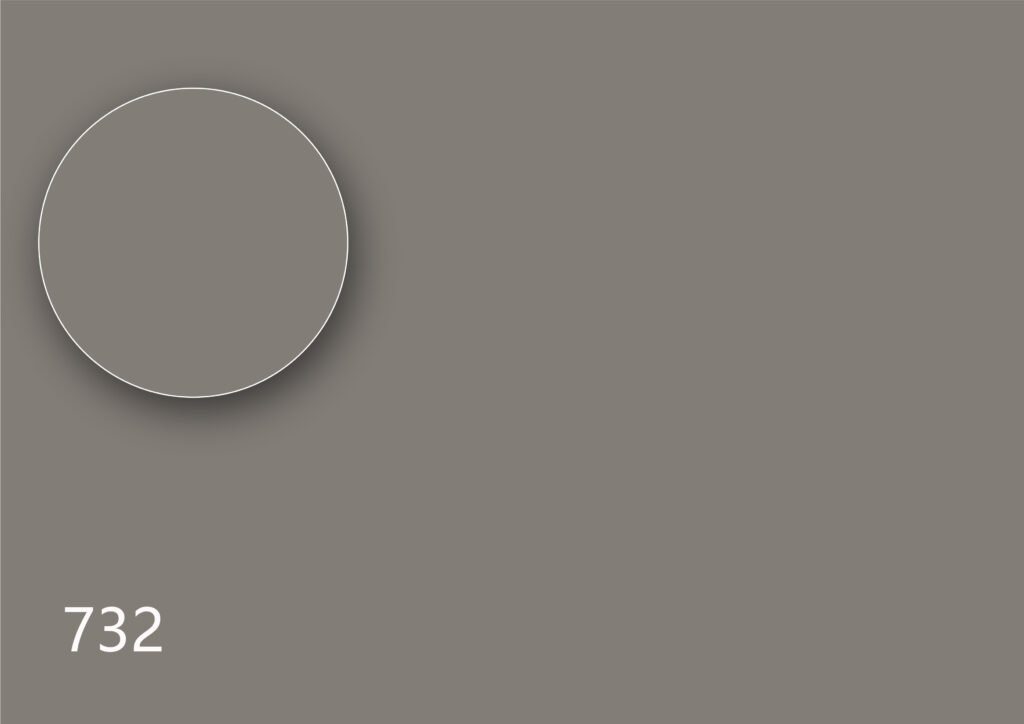

Melamine Decorative Panel

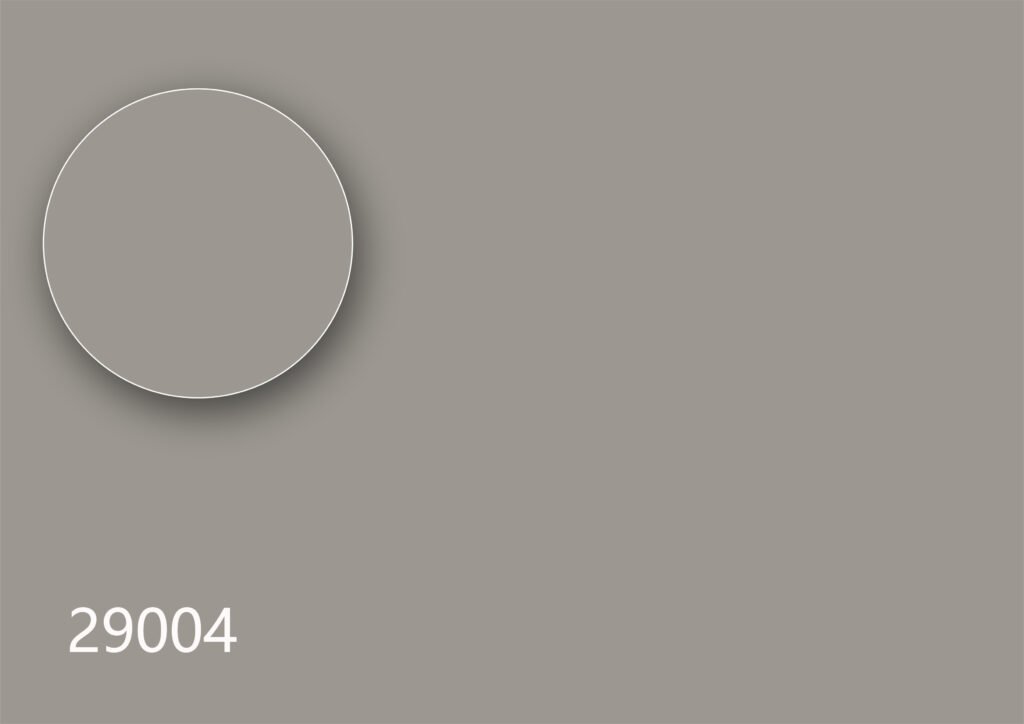

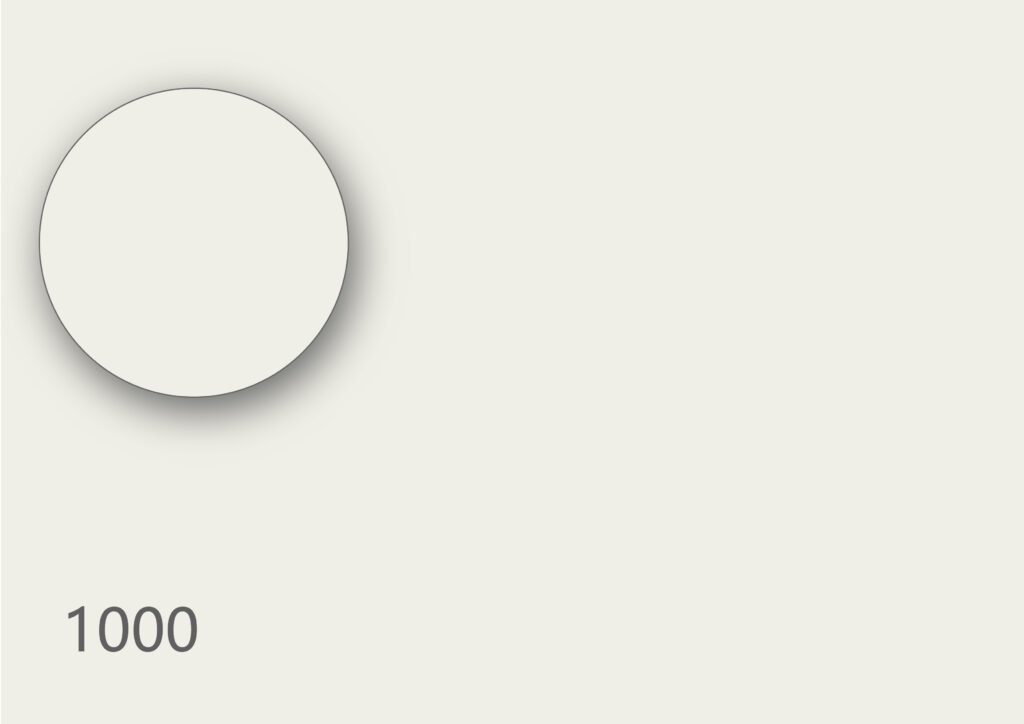

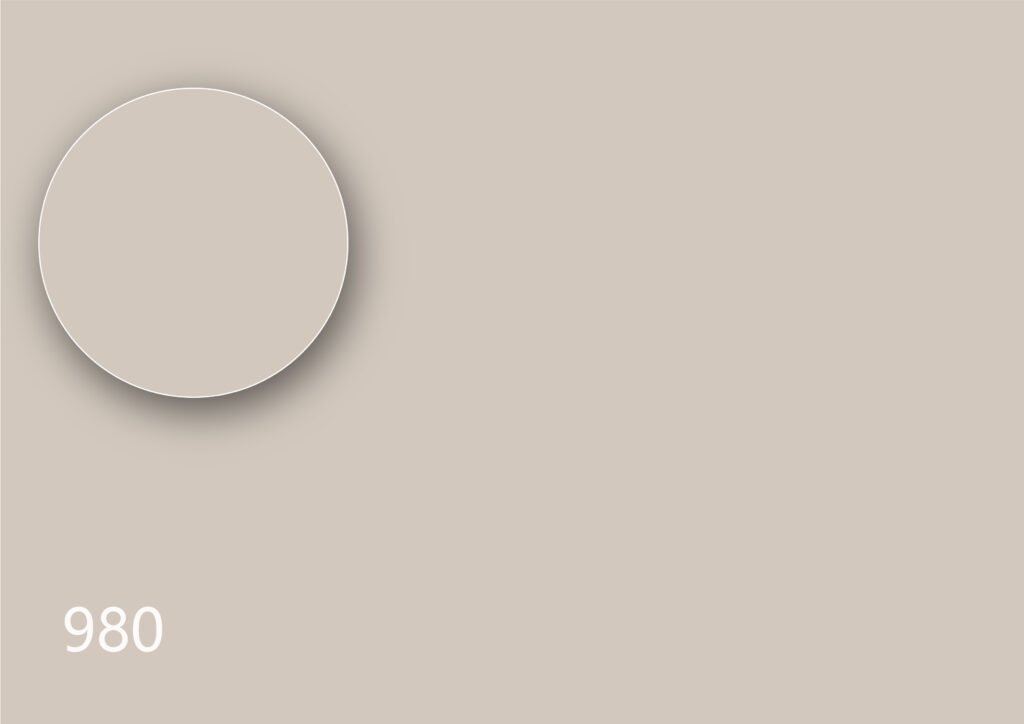

Solid Colors

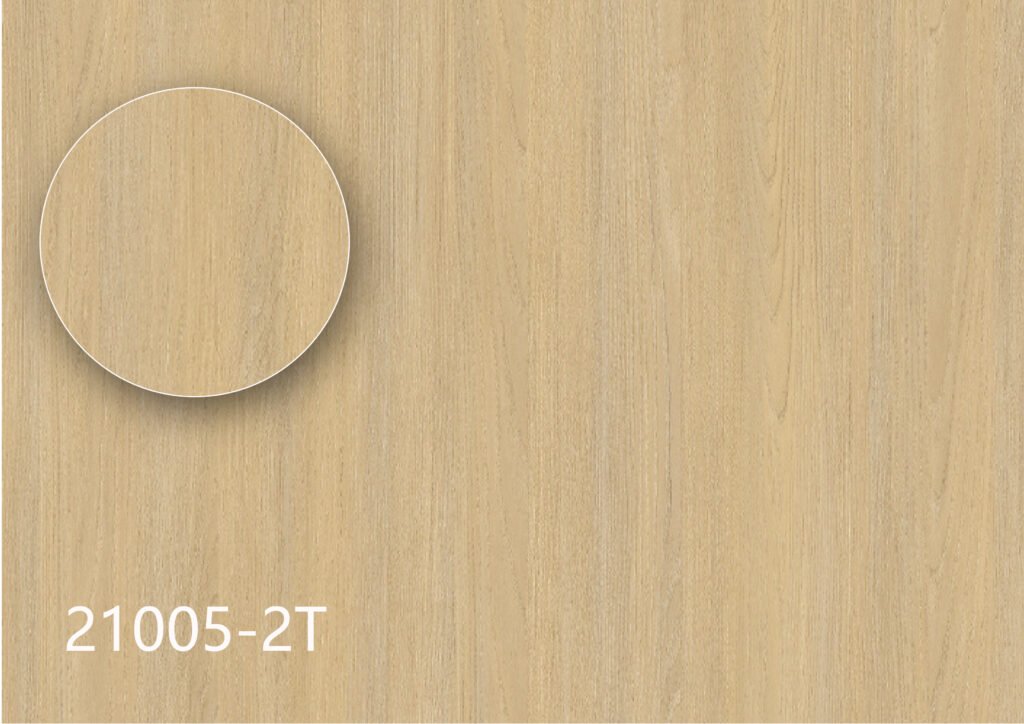

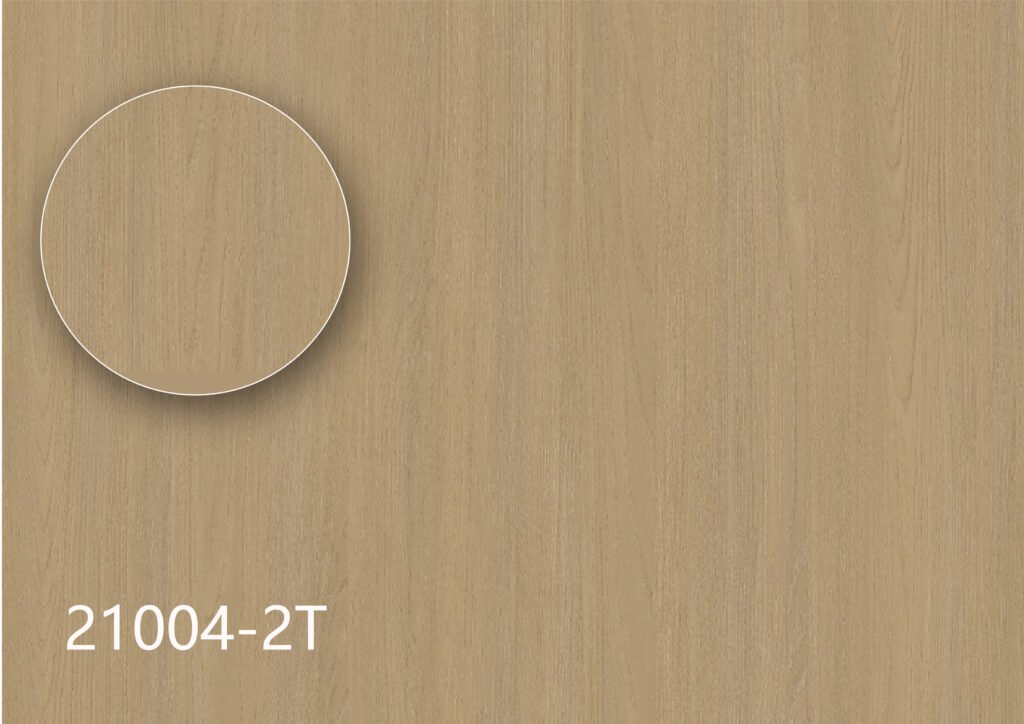

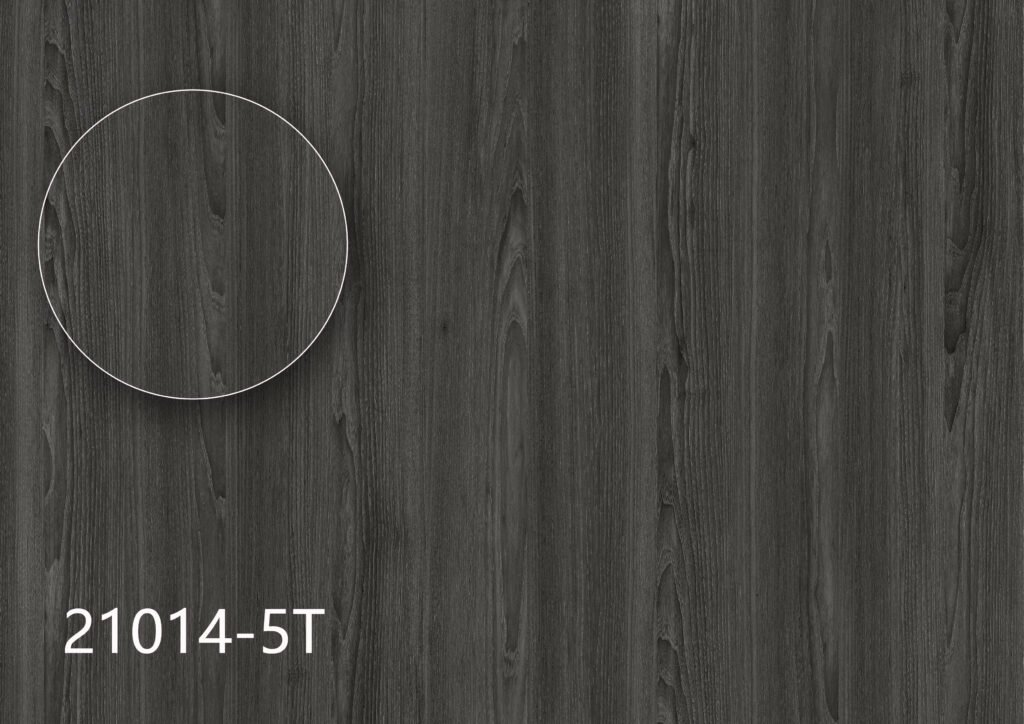

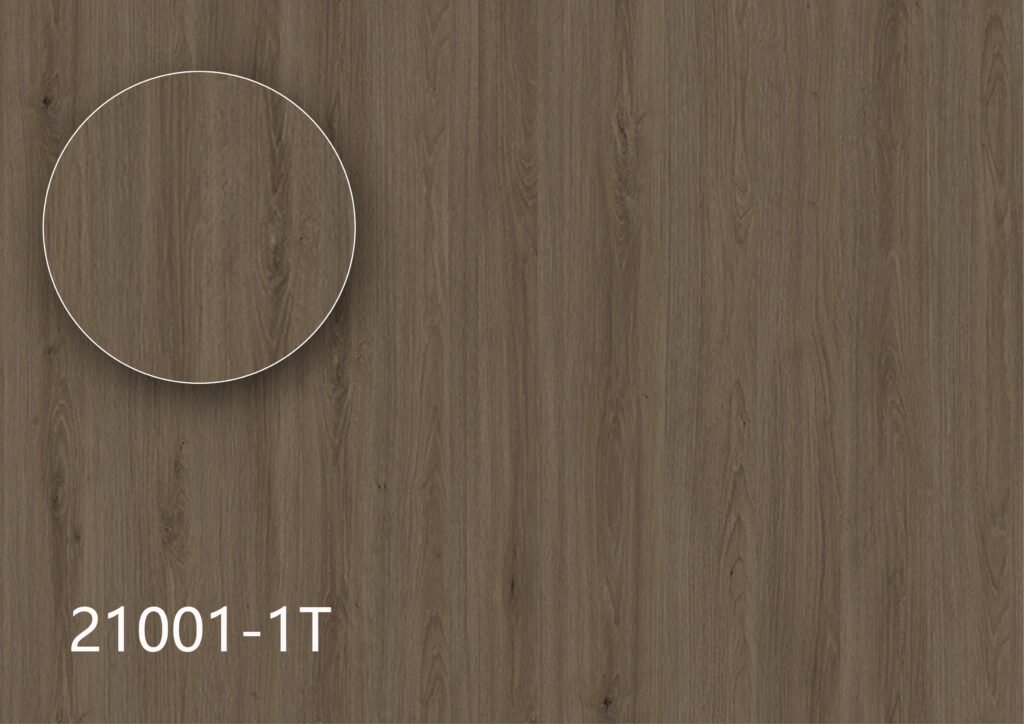

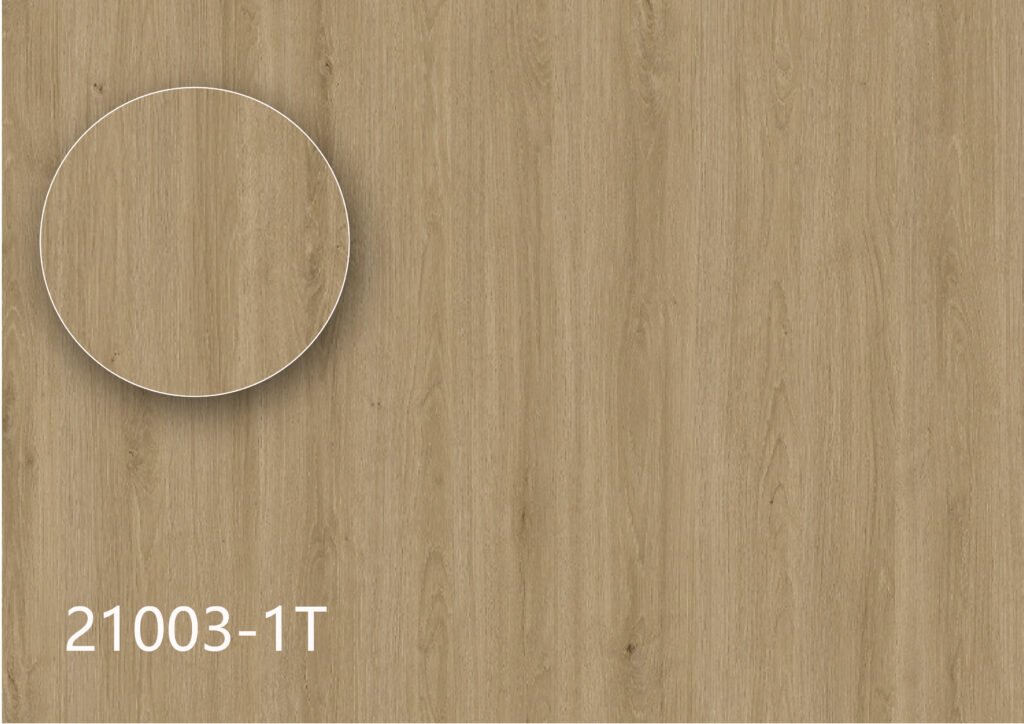

Melamine Decorative Panel

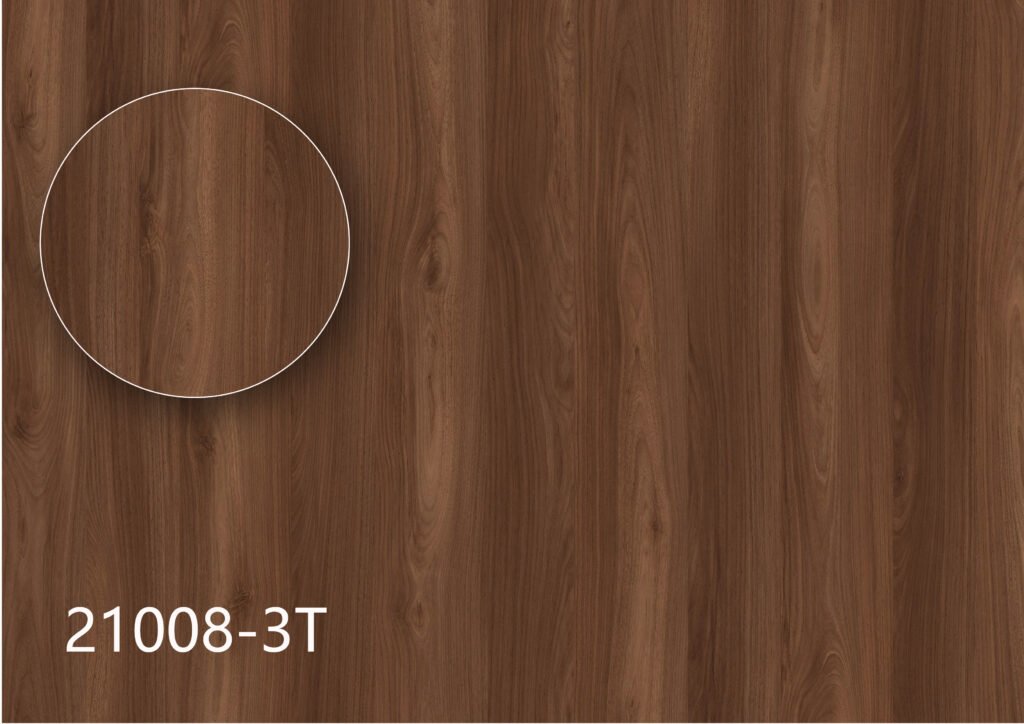

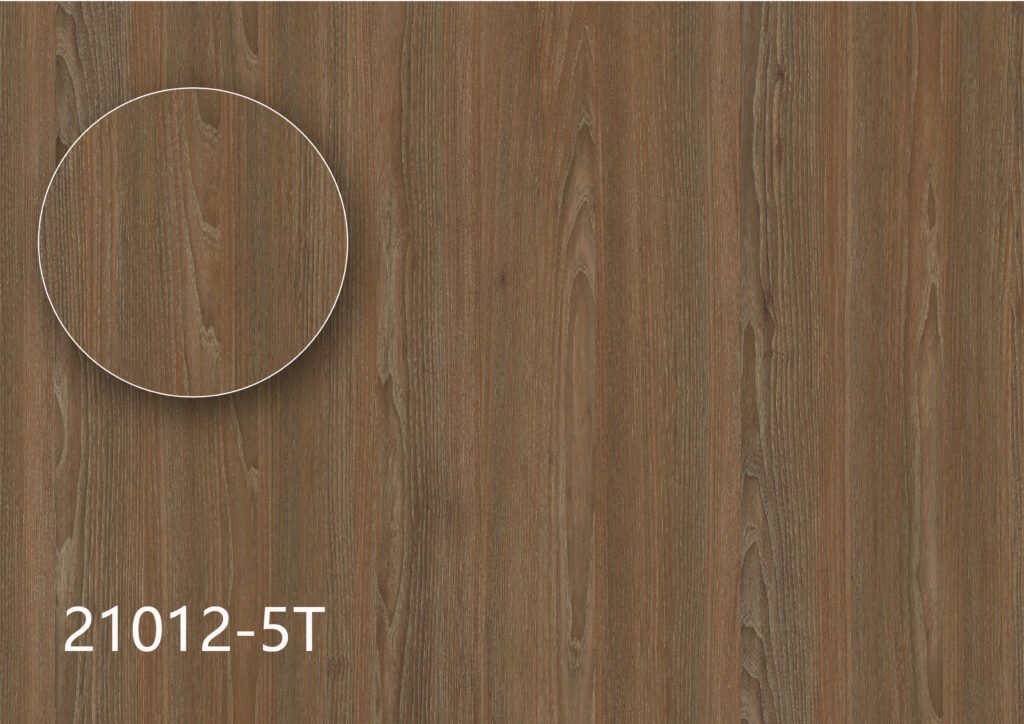

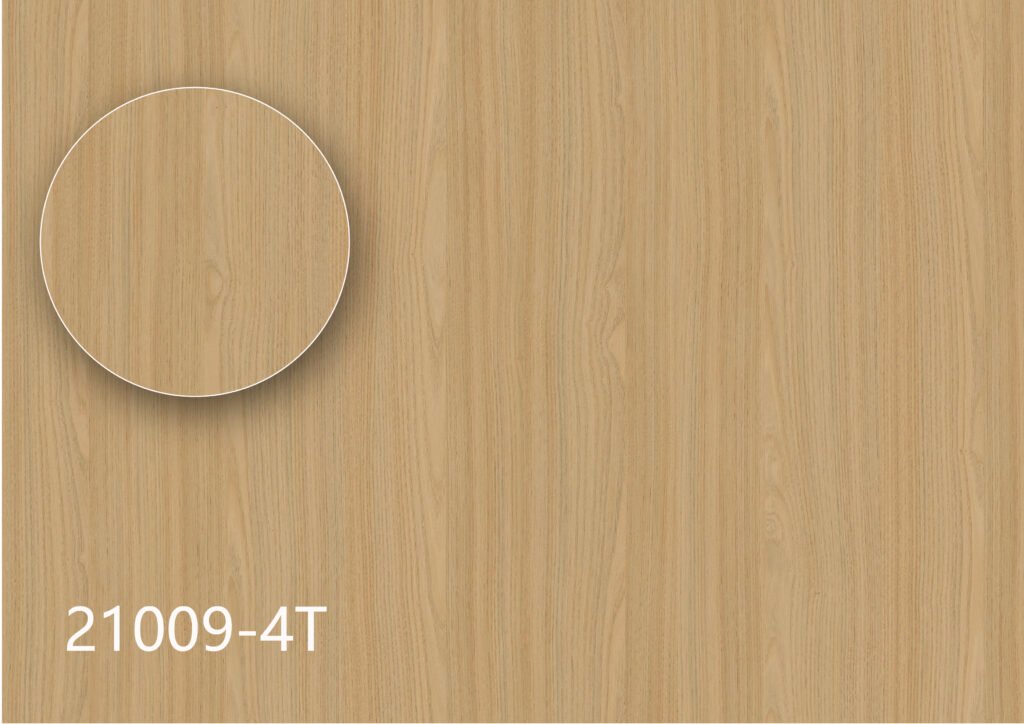

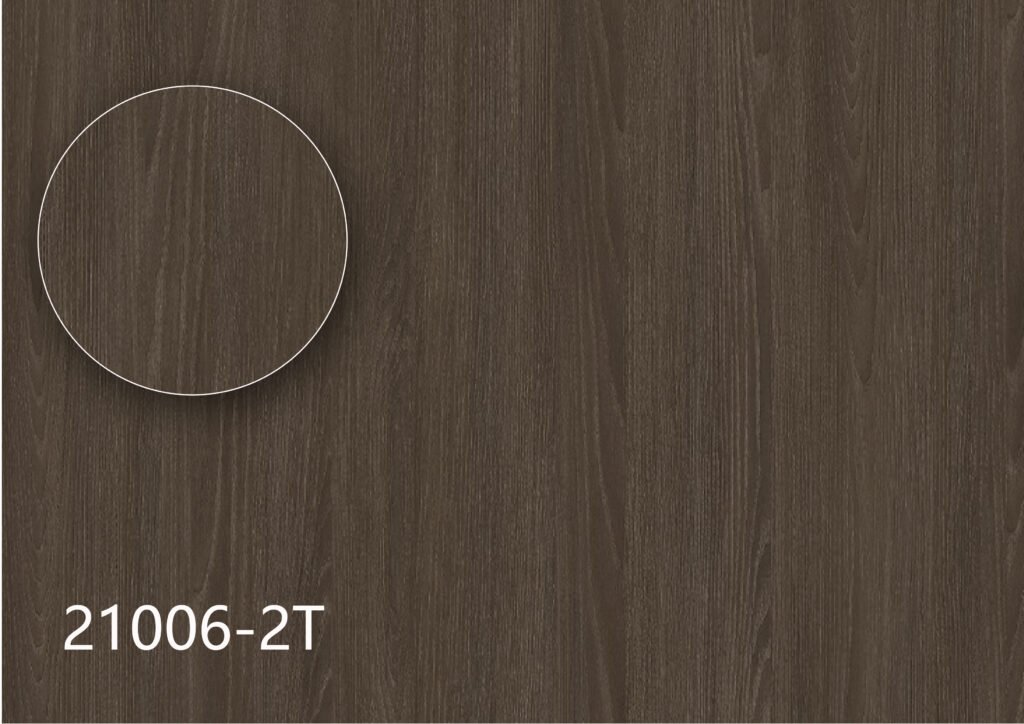

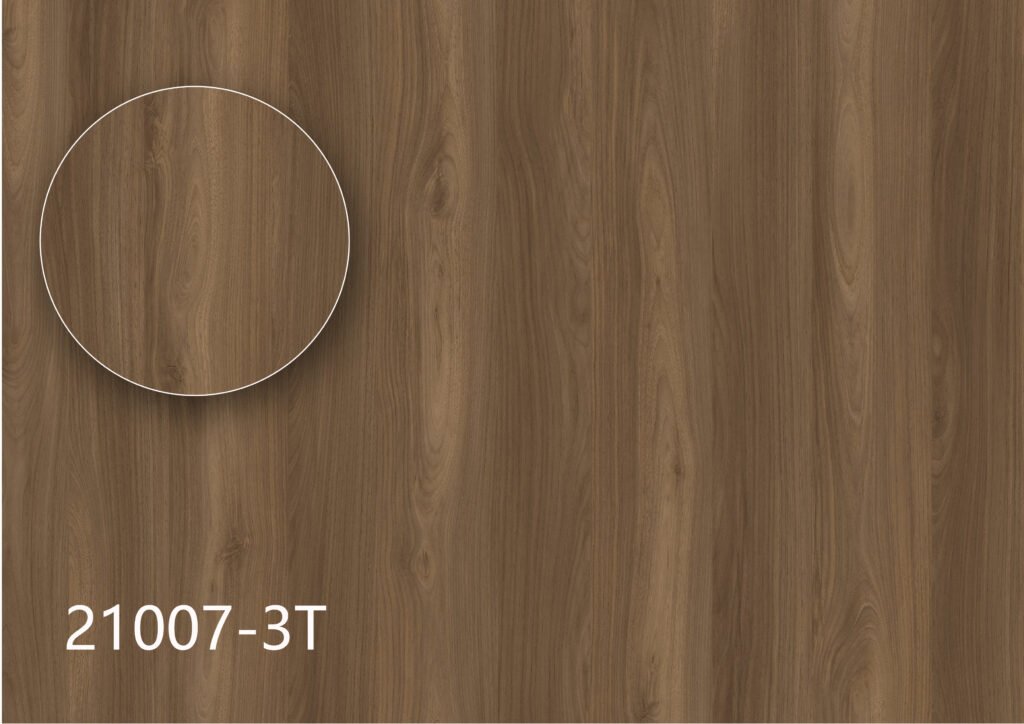

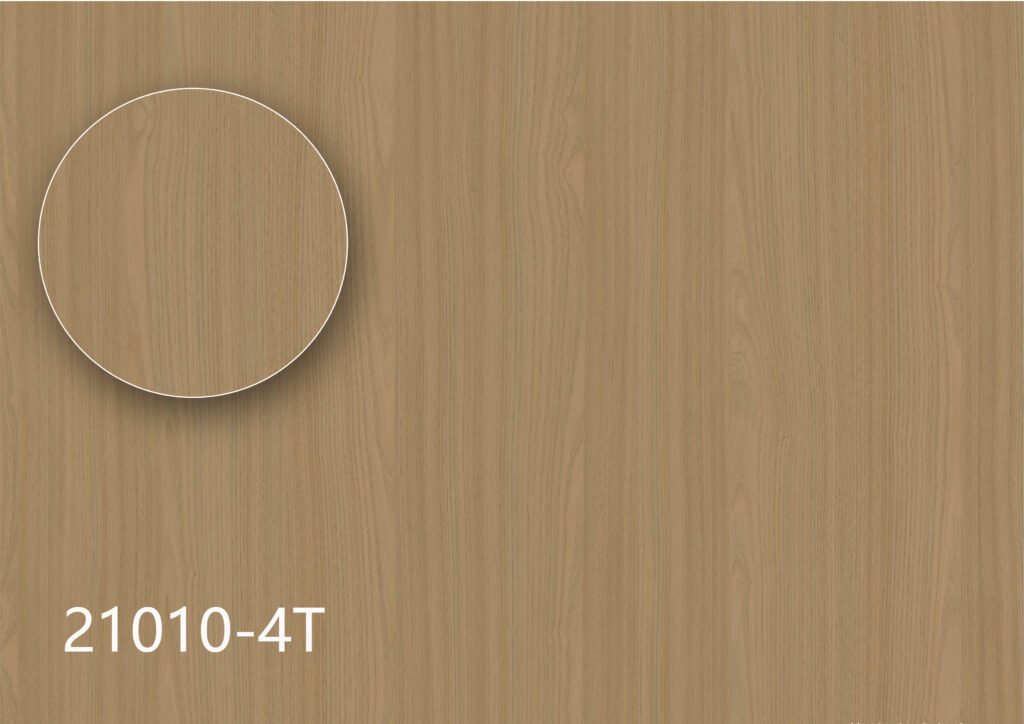

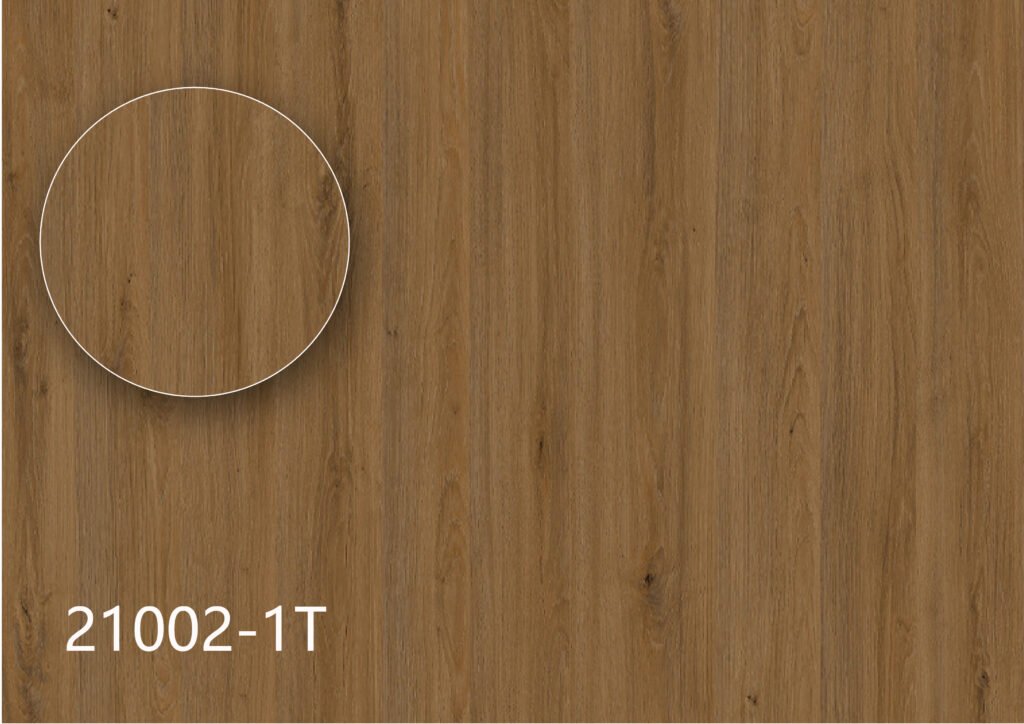

Wood Grain Colors

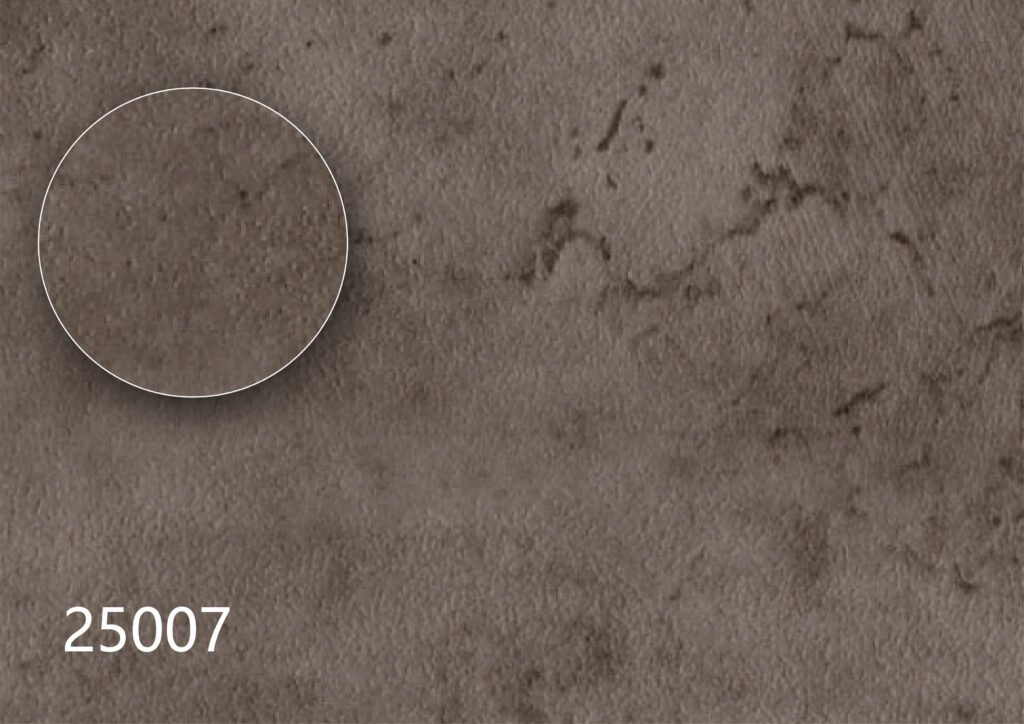

Melamine Decorative Panel

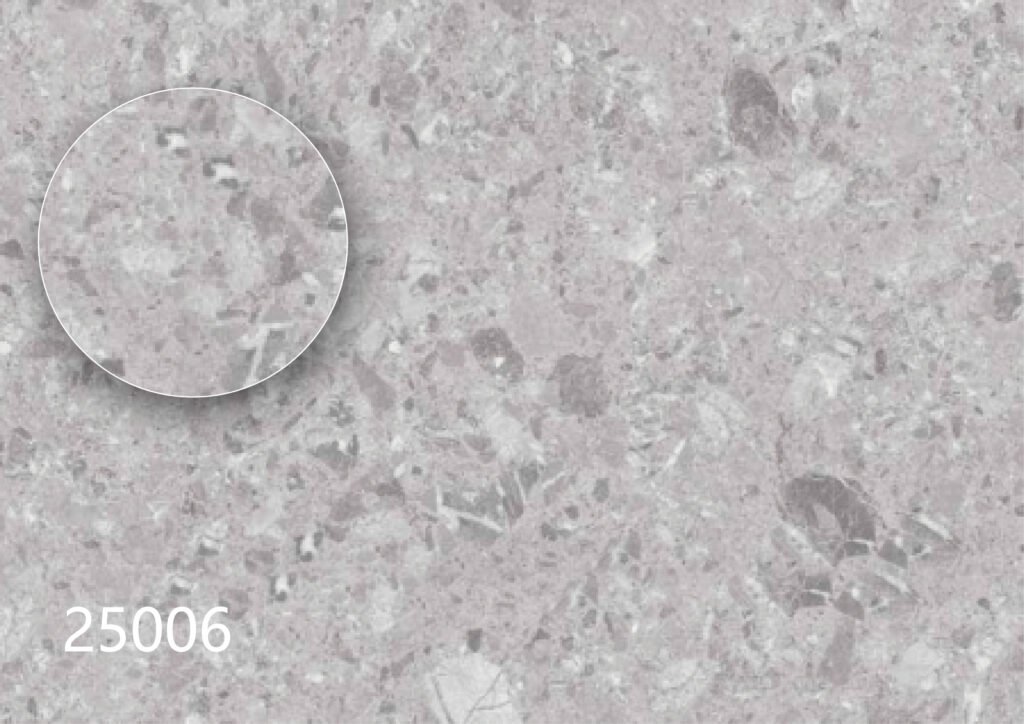

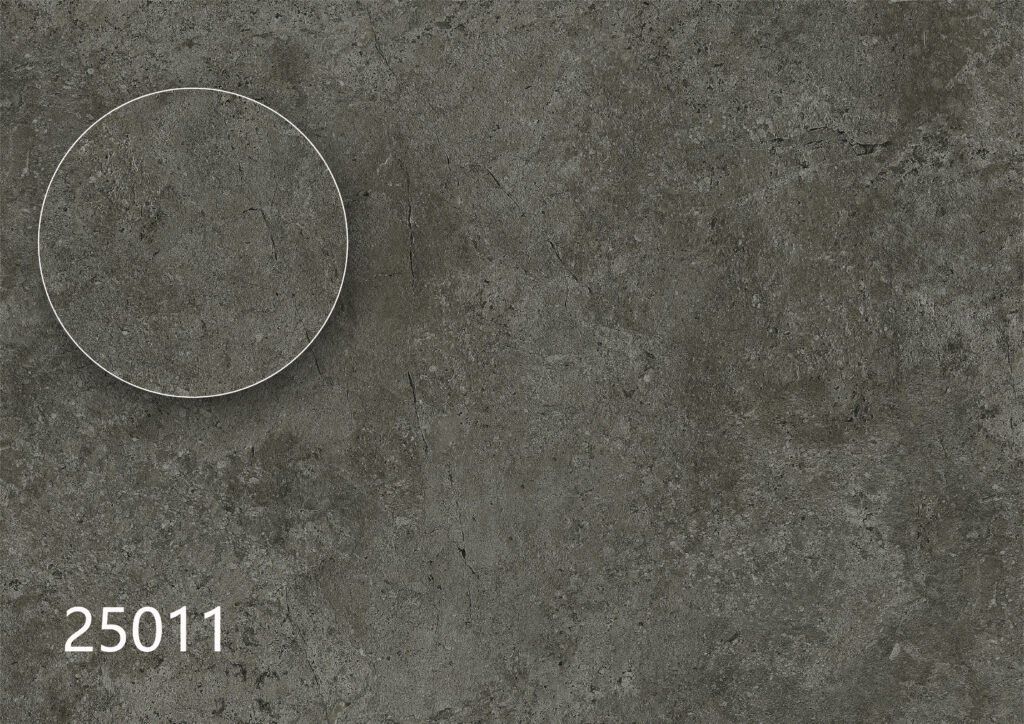

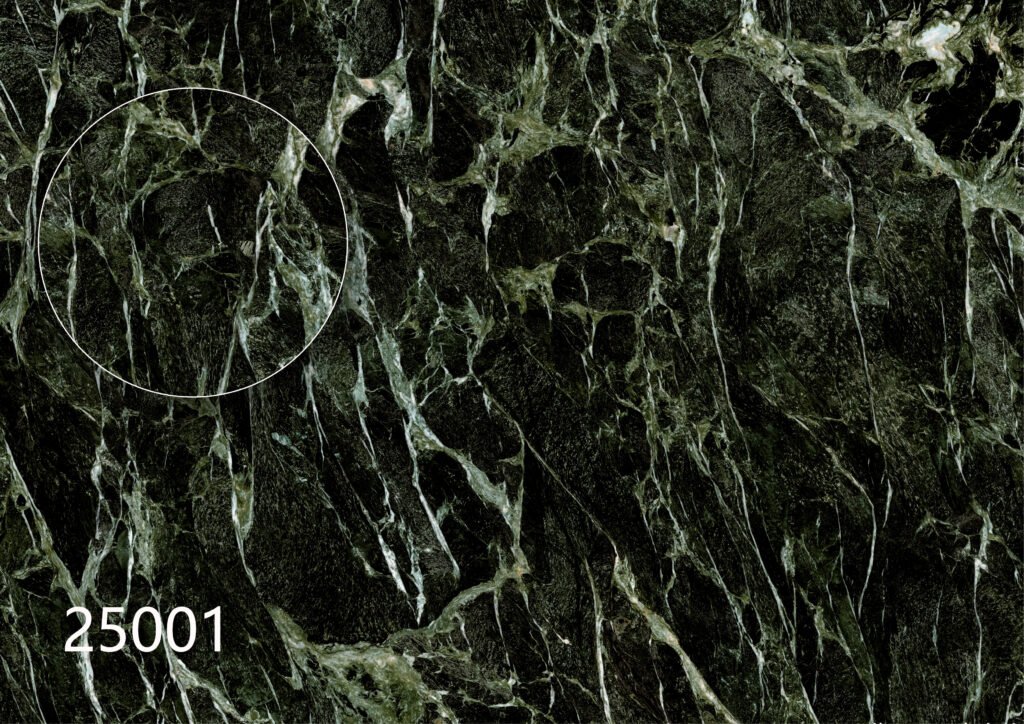

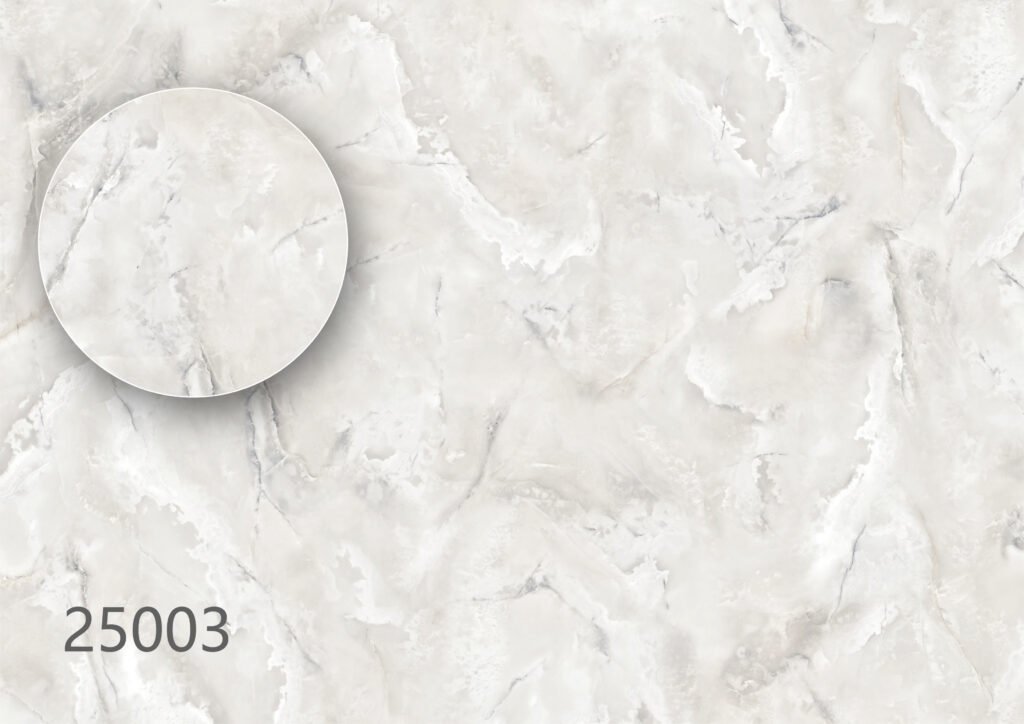

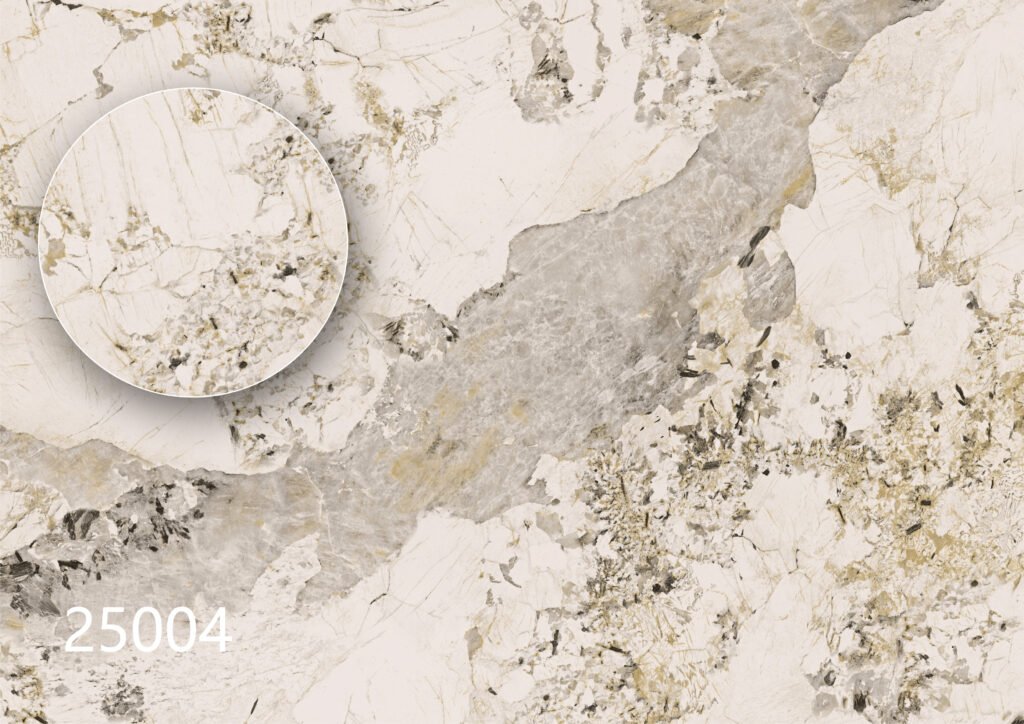

Stone Texture Colors
